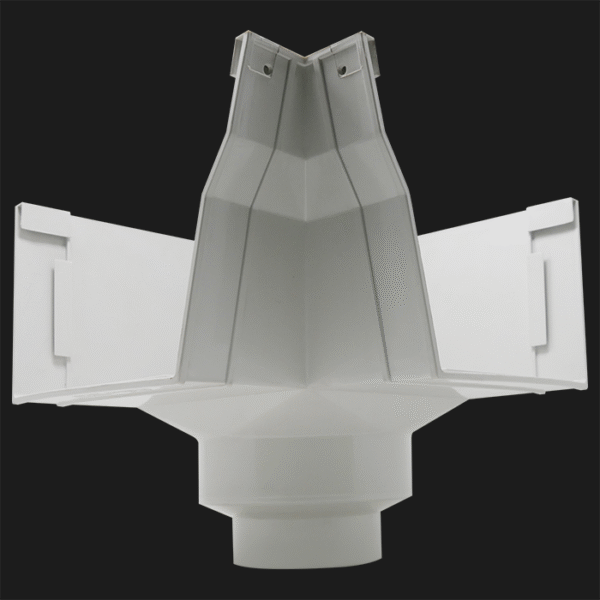

The AIZAAR uPVC Elbow Drop is a specially designed rainwater fitting that connects the horizontal gutter outlet to the vertical downpipe, using an angled (usually 90°) elbow combined with a drop outlet. It provides a smooth transition from gutter to downspout, typically where the gutter runs over the fascia board and the downpipe is offset below.
This part is essential in ensuring precise alignment, secure water flow, and a tidy, compact joint between the gutter and downpipe, especially in eaves and fascia-heavy roof areas.
📏 Size & Configuration
Parameter Specification
Angle 87.5° or 90° (standard elbow shape)
Inlet Compatibility Connects to AIZAAR gutter drop outlets or end drops
Outlet Diameter 63 mm, 75 mm, 90 mm, or 110 mm (based on downpipe size)
Length Compact elbow design for snug installations
Joint Type Push-fit or solvent-weld depending on model
🏠 Purpose & Application
Function Description
🔁 Angular Transition Connects gutter drop to vertical downpipe with a bend
💧 Smooth Water Flow Minimizes turbulence and splash at the outlet
🏠 Tight Roof Eave Clearance Ideal for short horizontal offsets near fascia boards
🧱 Clean Aesthetic Finish Maintains neat vertical alignment without visible gaps
✅ Key Features & Benefits
Feature Benefit
🔄 Integrated Bend + Outlet Saves space and avoids multiple joints
🌦️ Leak-Proof Jointing Prevents water loss and staining at bends
🧱 Compact and Clean Finish Ideal for buildings with minimal fascia clearance
🛠️ Fast Installation No need for separate elbow and connector
🔩 Durable & Weatherproof Withstands heat, rain, and impact
☀️ UV Resistant Long life in direct sunlight
♻️ Eco-Friendly Fully recyclable and lead-free
🧪 Technical Specifications (Typical)
Property Value
Material Grade RoHS-compliant, lead-free uPVC
Operating Temp -10°C to +60°C
UV Resistance 5–10 years color fastness
Joint Type Push-fit or solvent-weld
Lifespan 10–15 years (with standard maintenance)
