PVC Soffit Panels are pre-fabricated polyvinyl chloride (PVC) boards used to enclose the underside of roof overhangs (eaves) and other exposed roof elements. These panels provide ventilation, protection, and aesthetic appeal to the exterior of buildings. They are low-maintenance, weather-resistant, and often come in plain or ventilated profiles to support airflow into the attic.
🧪 Material Composition
PVC soffit panels are manufactured using:
uPVC (Unplasticized Polyvinyl Chloride) for rigidity and durability
Additives for UV resistance, color stability, and fire retardancy
May be solid or hollow-core for weight reduction
📏 Standard Sizes & Profiles
Parameter Typical Value
Length 3 m, 4 m, 5 m (custom lengths available)
Thickness 6 mm to 12 mm
Profiles Solid, Vented (perforated), Tongue & Groove
Finishes Smooth, Textured (woodgrain), Glossy or Matte
🏠 Key Applications

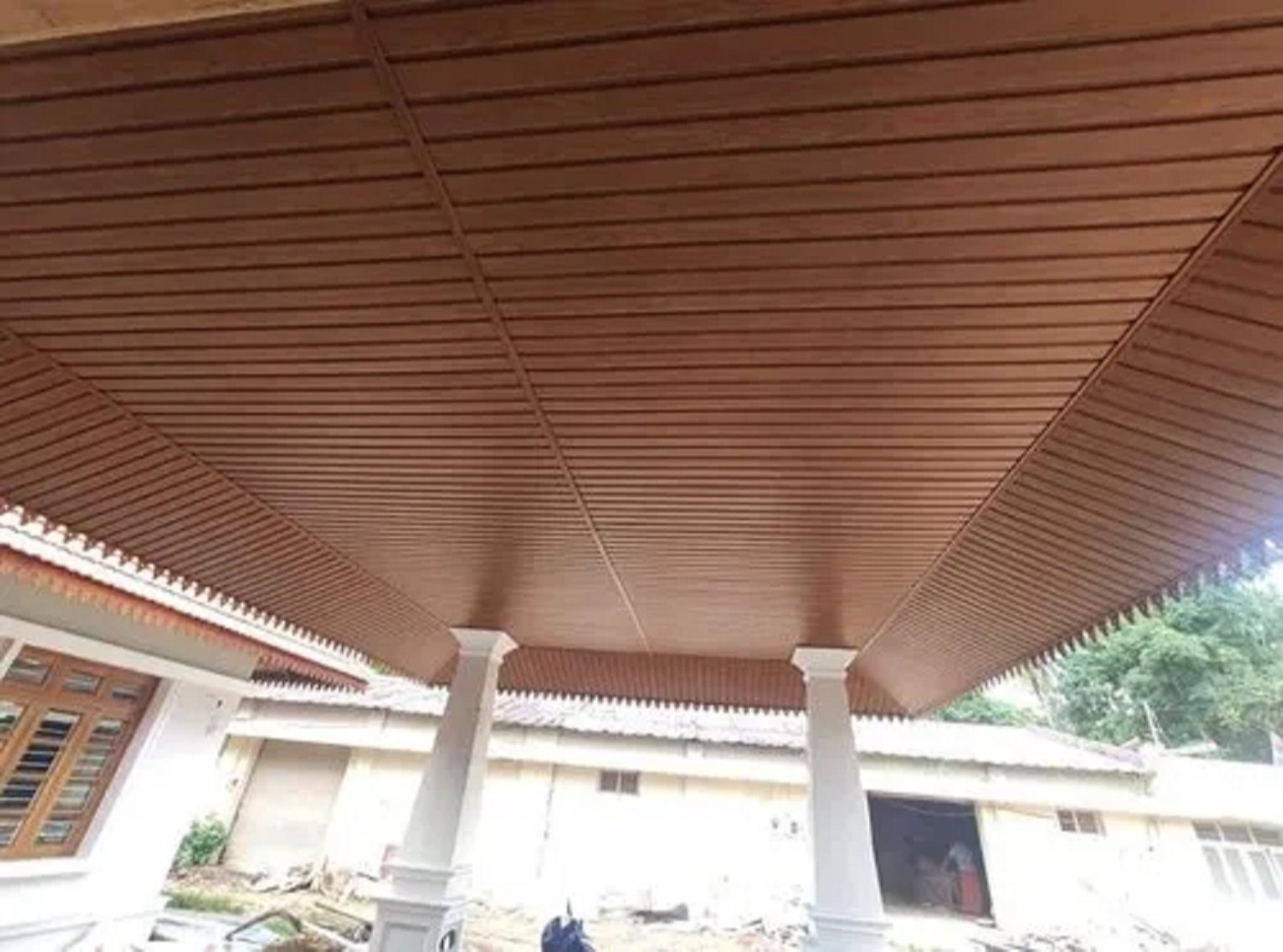

Roof Soffit Enclosure (eaves, overhangs)
Porch Ceilings
Gable Ends
Canopy Undersides
Carports and Gazebos
Boxing in Pipework or Beams (interior/exterior)
🛠️ Features & Benefits
Feature Benefit
💧 Waterproof & Moisture-Resistant Ideal for humid and rainy climates
🐜 Insect and Termite Proof Unlike wood, it does not rot or get infested
🔥 Fire Retardant Safer for residential and commercial use
☀️ UV Resistant Doesn’t crack or discolor in sunlight
🧱 Low Maintenance No painting or polishing needed
🪛 Easy to Install Lightweight, can be nailed or screwed
🎨 Aesthetic Appeal Clean, modern look with multiple textures and colors
💨 Ventilation Options Vented panels allow airflow to prevent roof condensation
🌍 Eco-Friendly Recyclable material with low environmental impact
🧪 Technical Properties (Typical)
Property Value
Density 1.4–1.6 g/cm³
Service Temperature -10°C to +60°C
Flame Spread Index Class B1 (DIN 4102)
Tensile Strength ~45 MPa
UV Resistance Up to 10 years (depends on grade)
Sound Insulation Good acoustic performance in enclosed spaces
